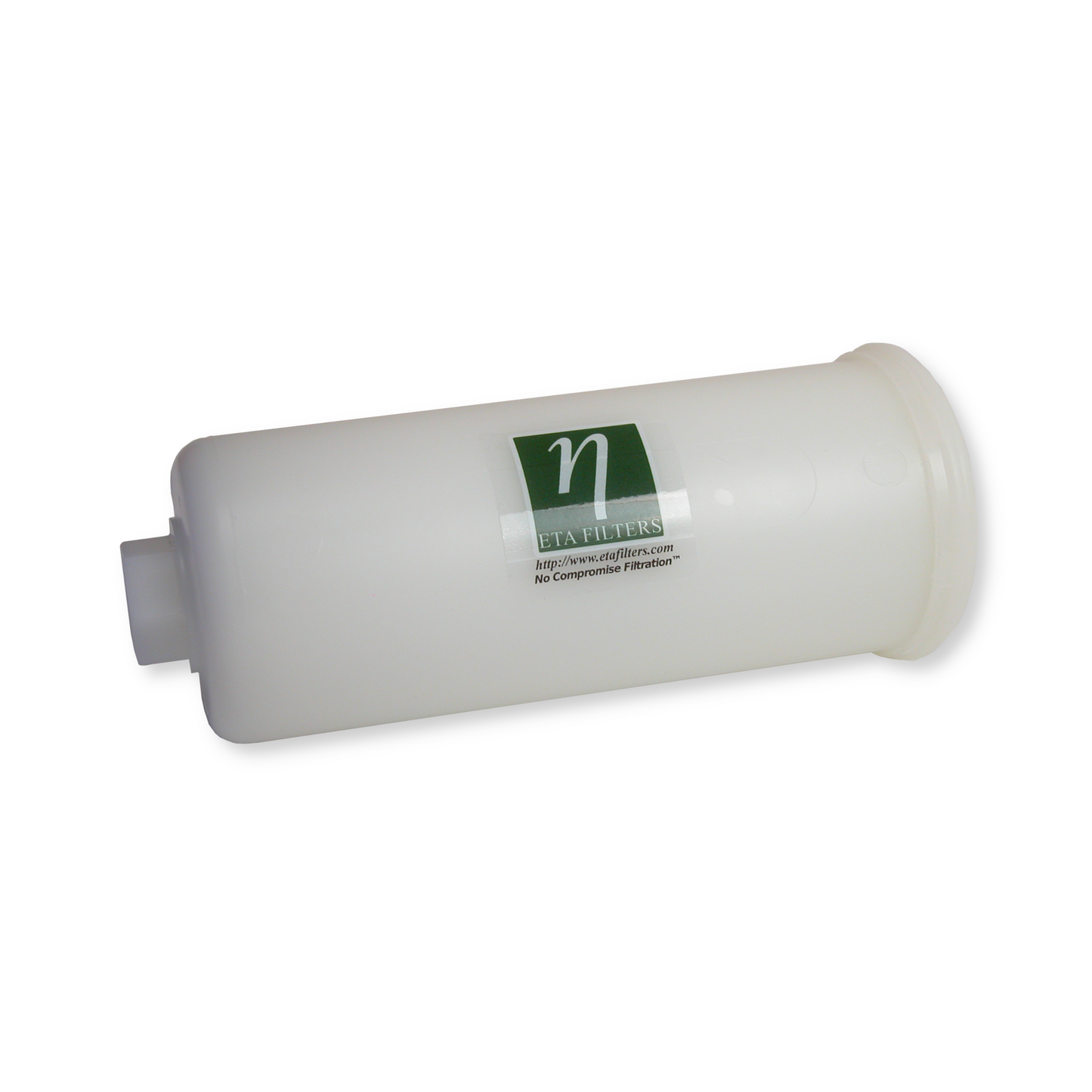

HC21-4N-PTF - HEPA Capsule Filter, Inline Filter

• Media: Borosilicate Glass Microfibers
• Filter Efficiency: ≥99.99% at 0.1µm and up to 110 SLPM*
• Body Material: Polypropylene (injection molded)
• Outside Diameter: 2.80" (7.1 cm)
• Length:  7.10" (18.0 cm)
• Max Pressure: 80 psig at 70°F (550 kPa at 21°C
                               30 psig at 212°F (210 kPa at 100°C)
• Max Temperature: 212°F (100°C)
• Effective Filtration Area: 123 in² (794 cm²)
• Ports: 3/8" NPT Female
• Flow Resistance: 4.6 in wg (1.15 kPa) at 100 SLPM

*SLPM is standard liters per minute at 101.3 kPa and 21.1°C
**Compare to the Pall® 12144 and save!

Click here to see pressure drop performance data (.pdf graph)

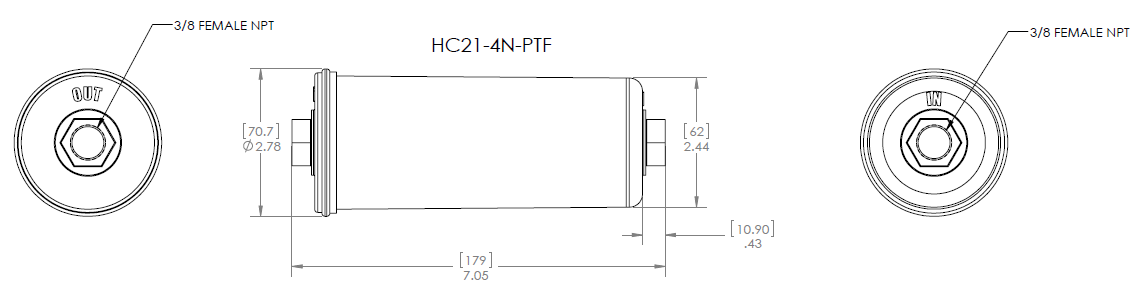

Click here to see the mechanical reference drawing(.pdf drawing)

*Pall® is a registered trademark of Pall Corporation
