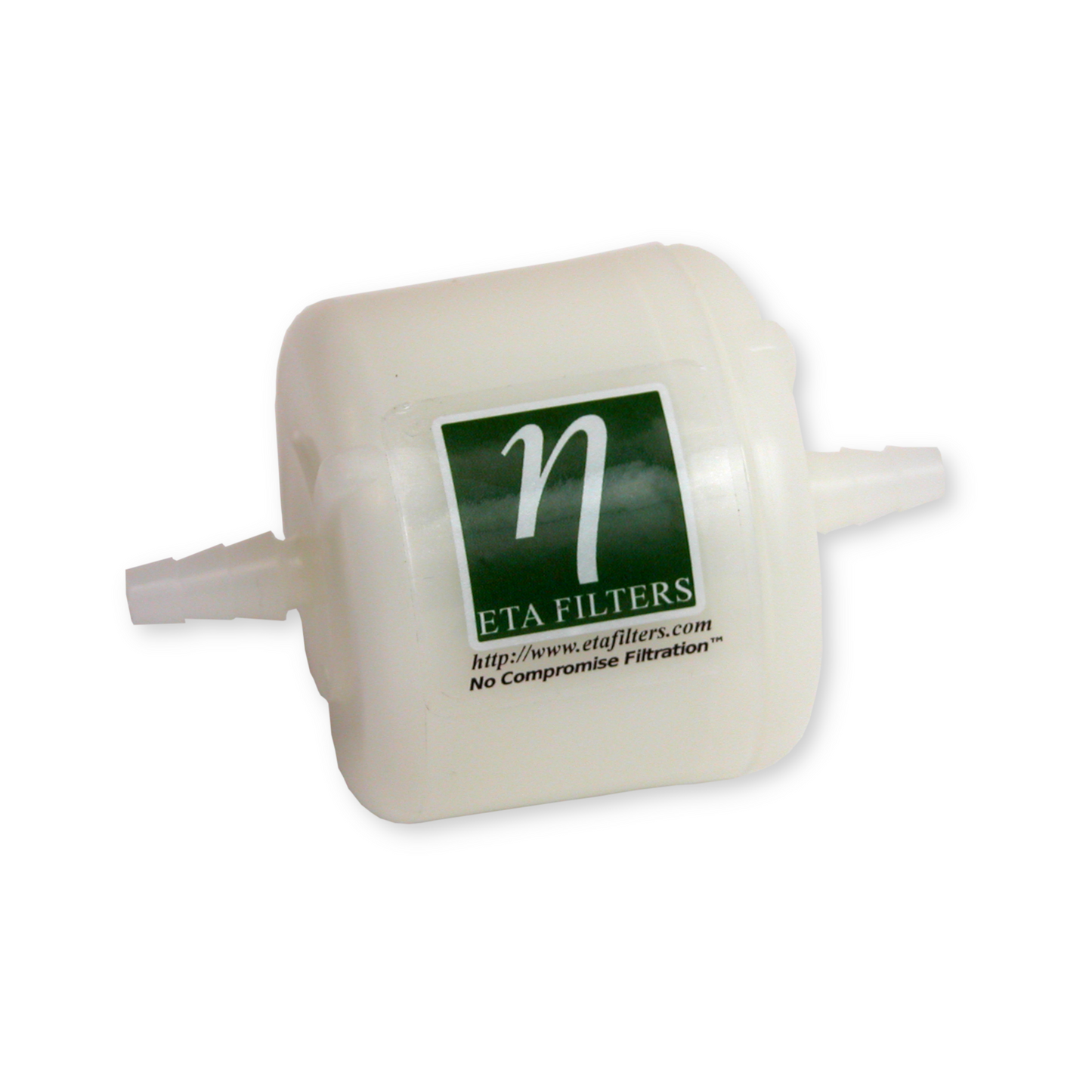

HC06-4N-B - HEPA Capsule Filter, Inline Filter

• Media: Borosilicate Glass Microfiber
• Filter Efficiency: ≥99.99% at 0.1µm and up to 60 SLPM*
• Body Material: Polypropylene (injection molded)
• Outside Diameter: 2.6" (6.6 cm)
• Length:  3.9" (end of barb to end of barb)
• Max Pressure: 90 psig at 70°F (620 kPa at 21°C)
                               40 psig at 185°F (300 kPa at 85°C)
• Max Temperature: 185°F (85°C)
• Effective Filtration Area: 50.0 in² (323 cm²)
• Ports: Stepped Barb, 1/4" - 3/8"
• Flow Resistance**: 2.0 in wg (0.50 kPa) at 10 SLPM

*SLPM is standard liters per minute at 101.3 kPa and 21.1°C
** Flow Resistance dominated by inlet/outlet barbed ports

Click here to see pressure drop performance data (.pdf graph)

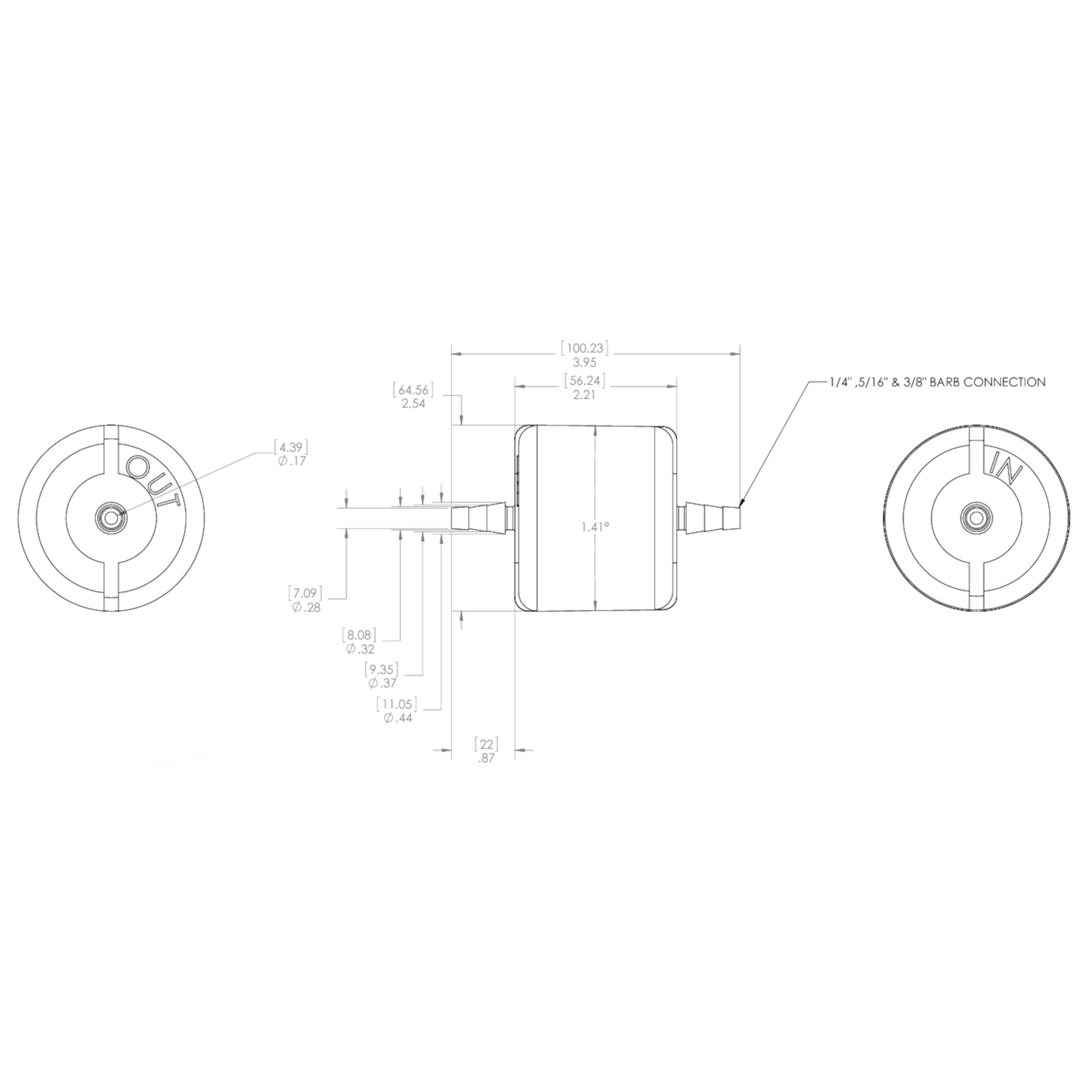

Click here to see the mechanical reference drawing(.pdf drawing)
