ETA FILTERS

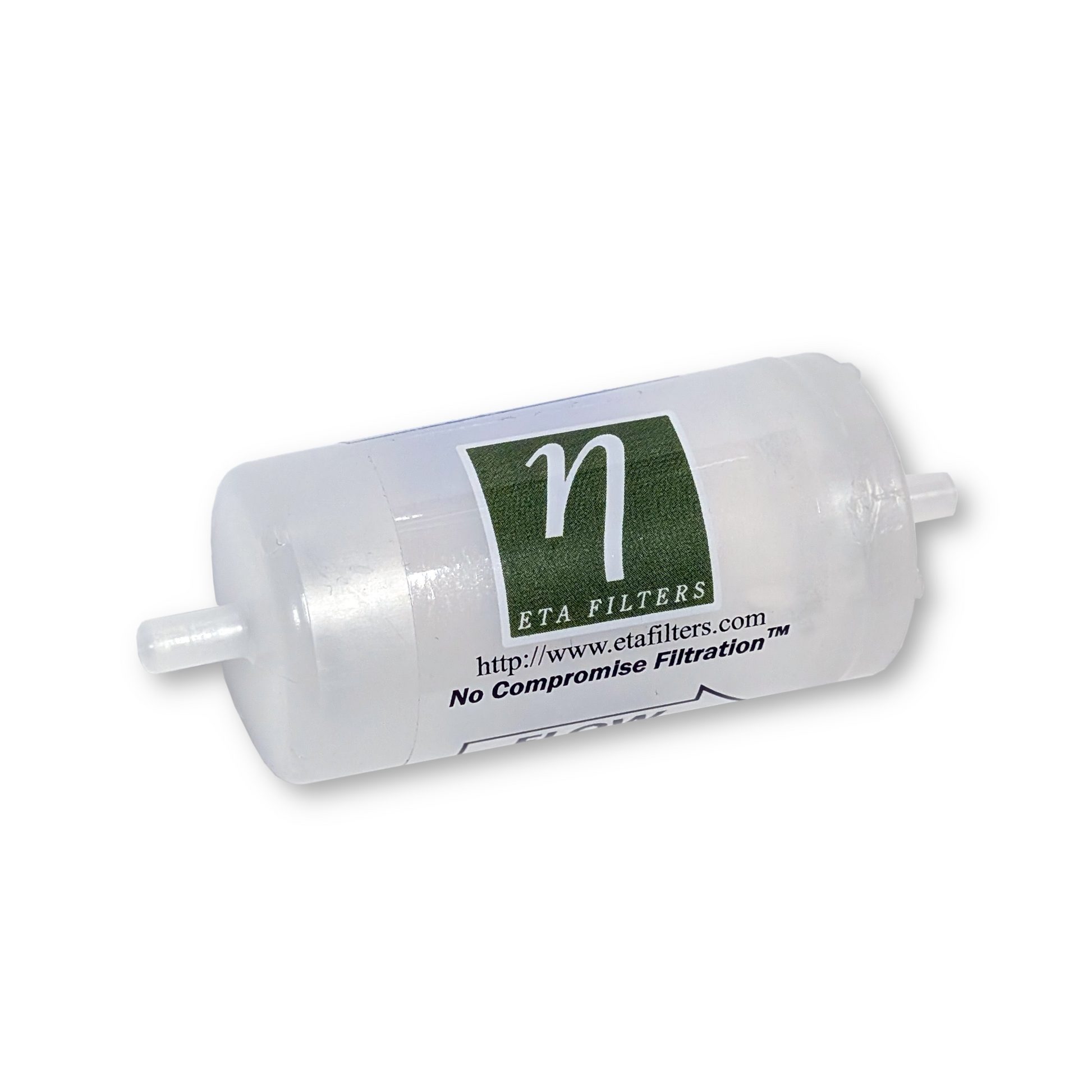

HC03-5N-B - Zero Count Filter
HC03-5N-B - Zero Count Filter
Volume Discounts
| Quantity | Unit Price |
|---|---|
| 1–4 | $39.60 |
| 5–9 | $35.64 |
| 10+ | $33.83 |
Couldn't load pickup availability
• Media: Borosilicate Glass Microfibers
• Filter Efficiency: 99.999+% at 0.1µm for flow rates less than 1.5 SLPM
• Body Material: Polypropylene (injection molded)
• Outside Diameter: 1.25"
• Length: 3.40" (end of barb to end of barb)
• Max Pressure: 50 psig at 70°F
• Max Temperature: 212°F (100°C)
• Effective Filtration Area: 15.6 in2 (100.8 cm2)
• Ports: 3/16'' OD Barb | 1/8" Tube Connection
• Flow Resistance: 1.3 in wg at 1.5 SLPM
*Zero Count Filter used for portable site measurements and filter mask fitting equipment.
Click here to see pressure drop performance data (.pdf graph)

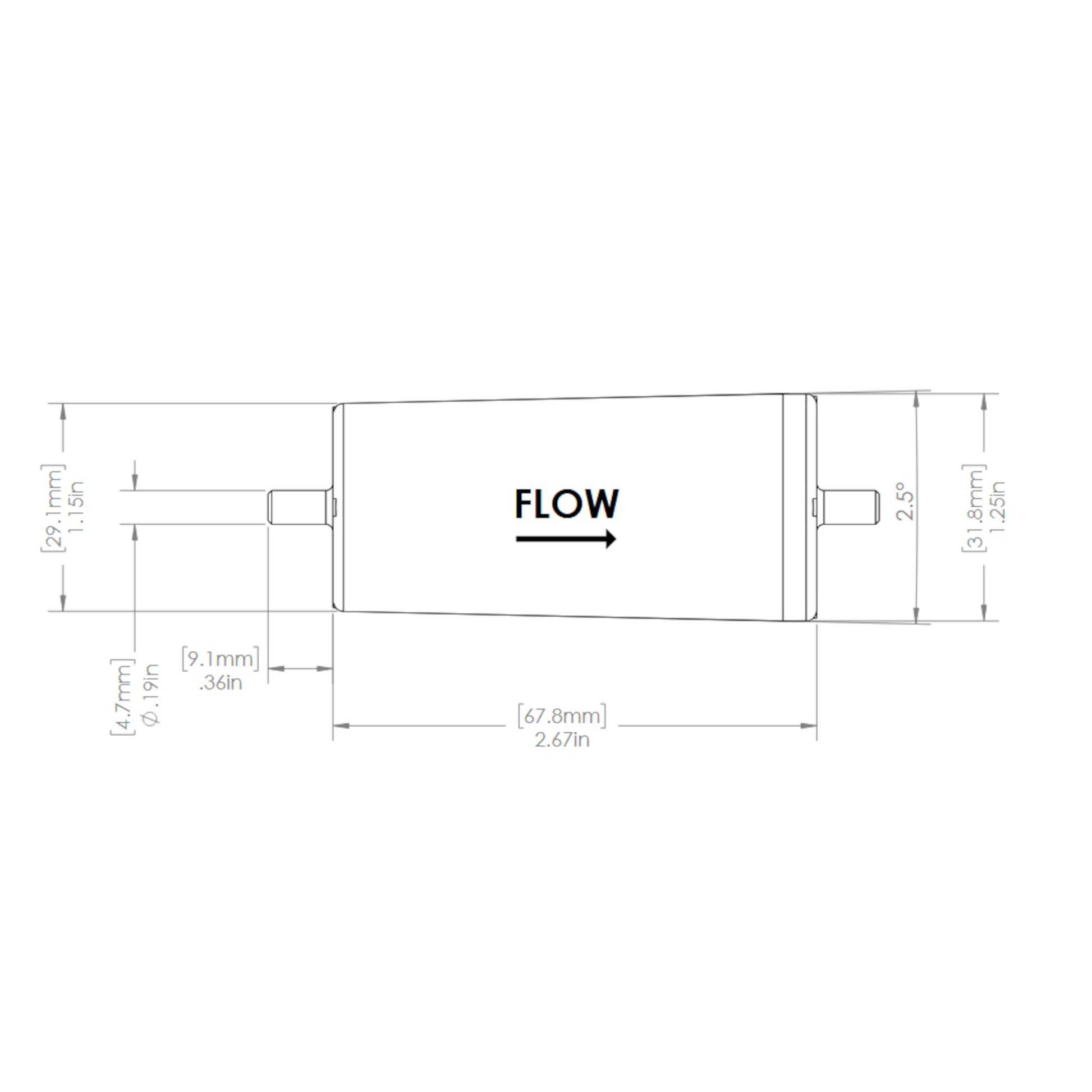

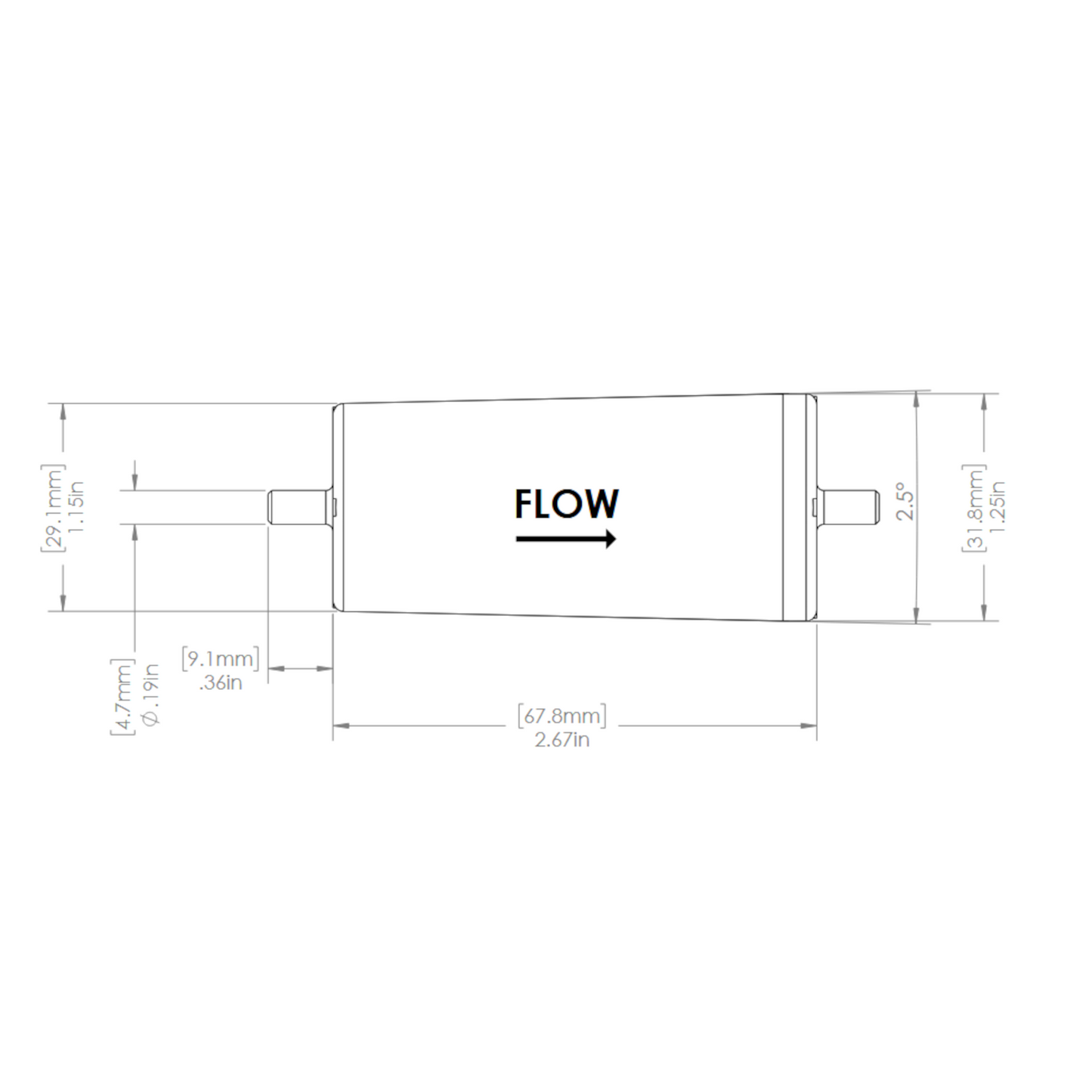

Click here to see mechanical reference drawing(.pdf drawing)
