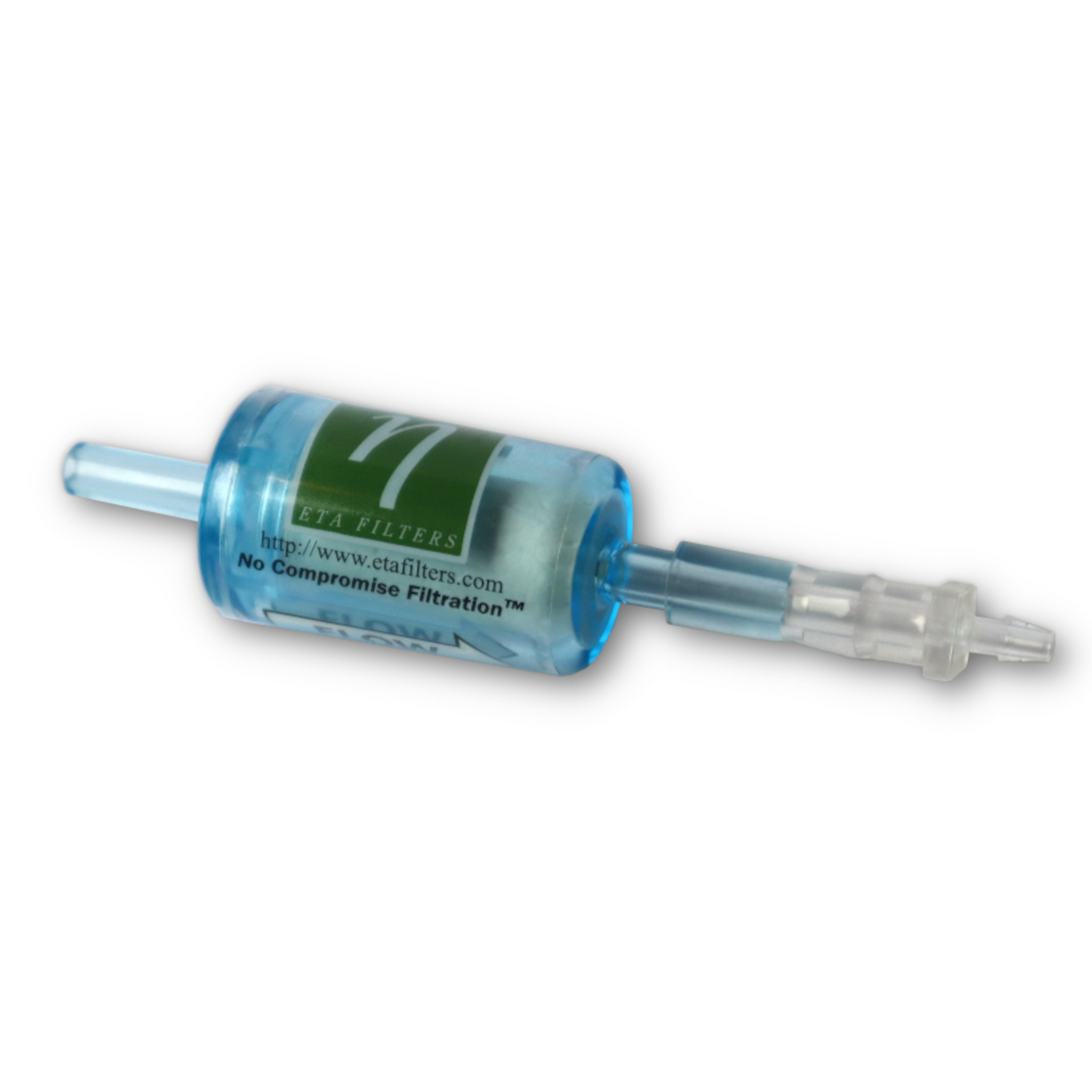

HC01-5N-C1 - Zero Count Filter

• Media: Formed Borosilicate Glass Microfibers with Fluorocarbon Binder
• Filter Efficiency: 99.9999+% at 0.1µm for flowrates less than 2 SLPM
• Body Material: Nylon (injection molded)
• Outside Diameter: 1.00"
• Length:  4.20" (end of barb to end of barb)
• Max Pressure: 50 psig at 70°F
• Max Temperature: 212°F (100°C)
• Effective Filtration Area: 2.65 in² (17.1 cm²)
• Ports: 1/4'' OD Barb | 1/8" Tube Connection
• Flow Resistance: 3.1 in wg at 2 SLPM

*Zero Count Filter used for portable site measurements and filter mask fitting equipment.

Click here to see pressure drop performance data (.pdf graph)
Click here to see mechanical reference drawing(.pdf drawing)
