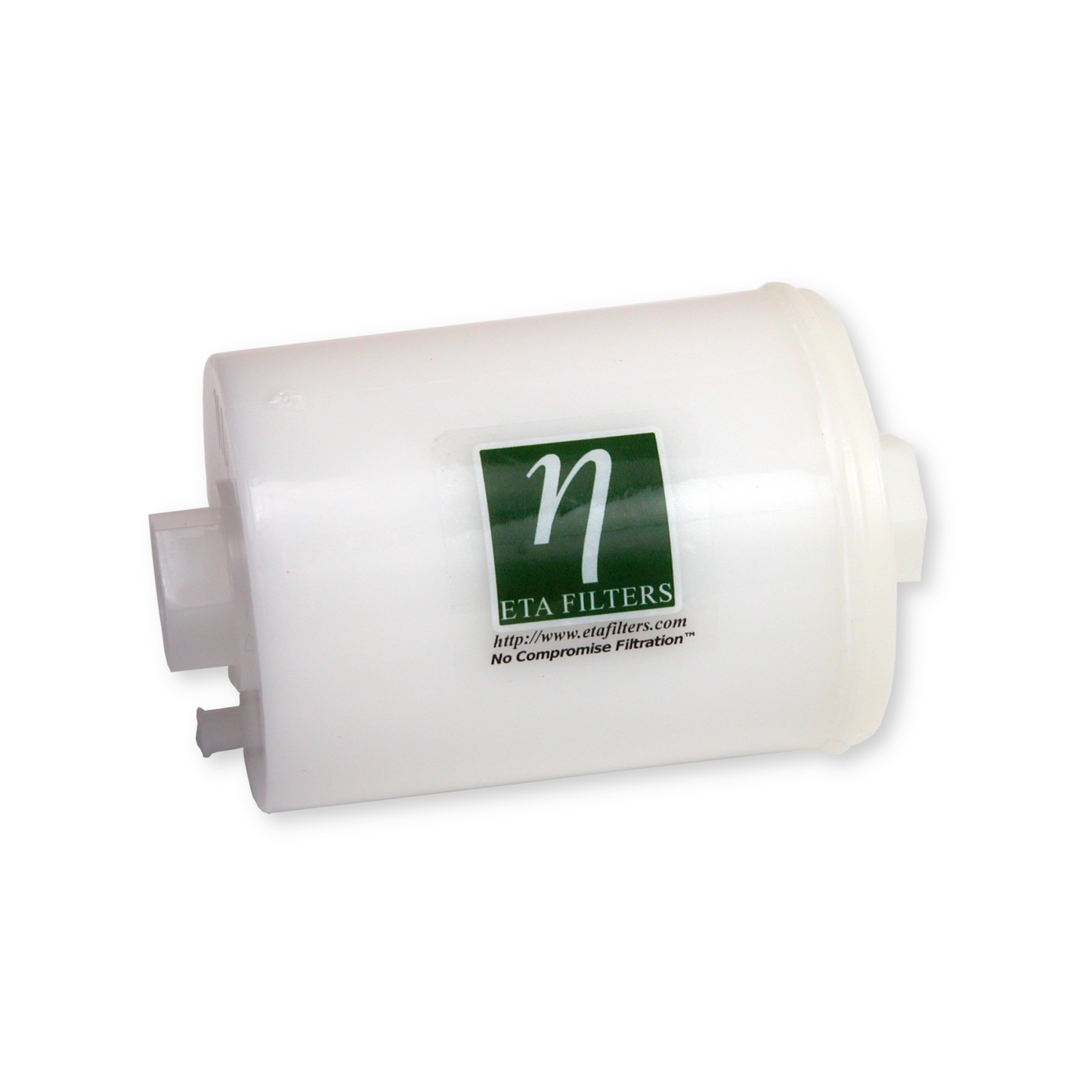

HC10-4N-PTF - HEPA Capsule Filter, Inline Filter

s• Media: Borosilicate Glass Microfibers
• Filter Efficiency: ≥99.99% at 0.1µm and up to 110 SLPM*
• Body Material: Polypropylene (injection molded)
• Outside Diameter: 2.7" (6.9 cm)
• Length:  4.4" (11.3 cm)
• Max Pressure: 100 psig at 70°F (690 kPa at 21°C
                                40 psig at 212°F (275 kPa at 100°C)
• Max Temperature: 212°F (100°C)
• Effective Filtration Area: 86.6 in² (559 cm²)
• Ports: 3/8" NPT Female
• Flow Resistance: 5.0 in wg (1.25 kPa) at 100 SLPM

*SLPM is standard liters per minute at 101.3 kPa and 21.1°C
