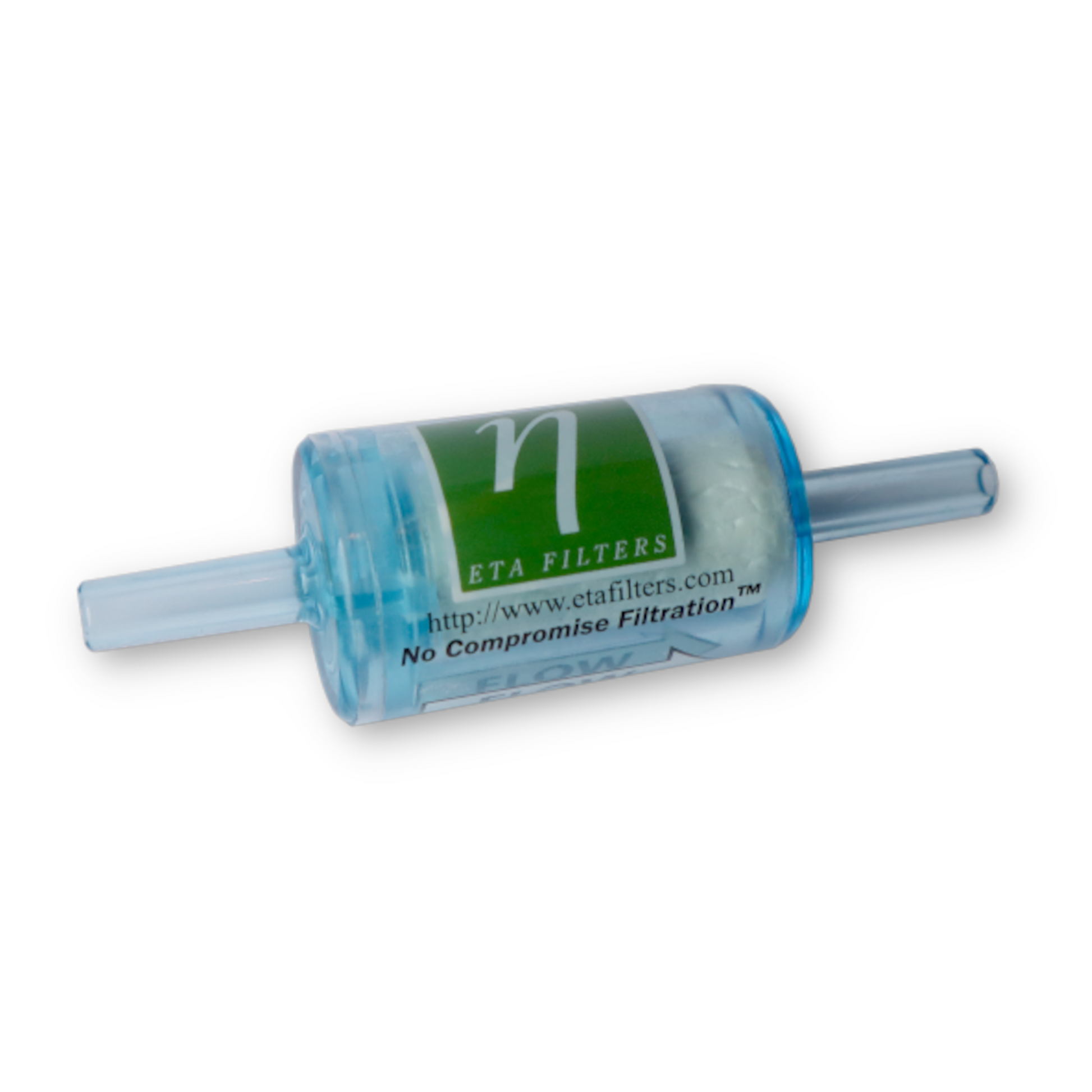

HC01U-4N-B - Miniature HEPA Capsule Filter

• Media: Formed Borosilicate Glass Microfibers with Fluorocarbon Binder
• Filter Efficiency: ≥99.99% at 0.1µm
• Body Material: Blue Nylon (injection molded)
• Outside Diameter: 1.06" (2.69 cm)
• Length:  3.24" (8.2 cm) (end of barb to end of barb)
• Max Pressure: 125 psig at 110°F
• Max Temperature: 230°F (110°C)
• Effective Filtration Area: 2.65 in² (17.1 cm²)
• Ports: 1/4'' OD
• Flow Resistance: 5 in wg at 7 SLPM

*Compare to the Balston ® 9933-05 series filters and save!

Click here to see pressure drop performance data (.pdf graph)

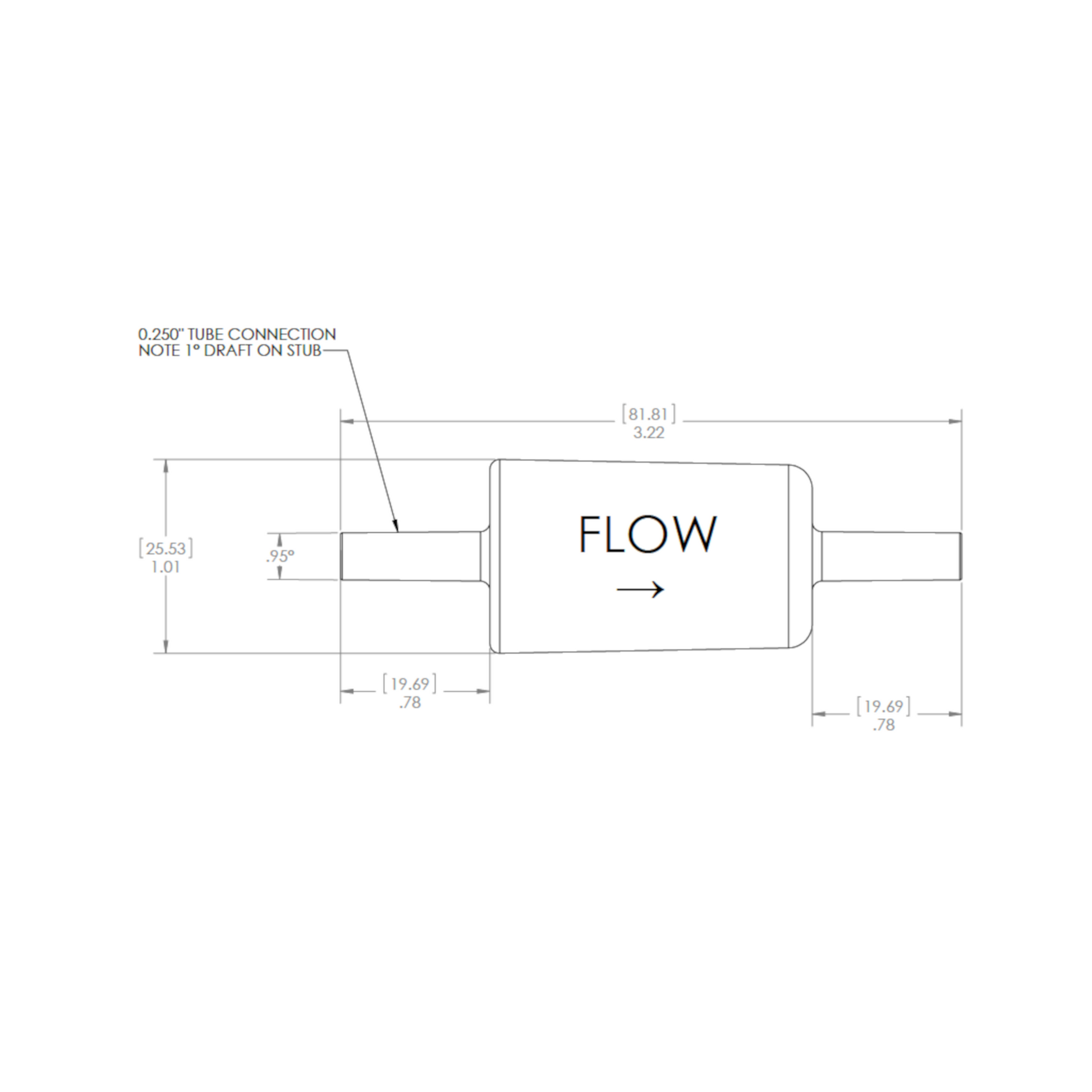

Click here to see the mechanical reference drawing (.pdf drawing)

*Balston® is a registered trademark of Parker Hannifin Corp
